Post by 14k on Wed Oct 05, 2011 9:51 am

Diagrams and Locations  Connec10
14k
14k
Admin

Number of posts : 2687
Age : 31
Location : Woodstock IL
Vehicle : Cheby truck
Registration date : 2009-01-18

View user profile http://midwest240sx.forumotion.com

Back to top Go down

Diagrams and Locations  Empty Re: Diagrams and Locations

Post by 14k on Wed Oct 05, 2011 9:58 am

Heres some more if you have any request let me know. I only have access to USDM so i cant do SR or RB diagrams sry

Diagrams and Locations  Relay_10
Diagrams and Locations  Relay_12
Diagrams and Locations  Splice10
Diagrams and Locations  Splice11

WIRE COLOR CODE ID

B: Black
BR: Brown
CH: Dark Brown
DG: Dark Green
G: Green
GY: Grey
L: Blue
LG: Light Green
OR: Orange
P: Pink
PU: Purple
R: Red
SB: Sky Blue
W: White
Y: Yellow

When the wire color is striped, the base color is given first, followed by the stripe color as shown below:
Example: L/W = Blue with White stripe.
14k
14k
Admin

Number of posts : 2687
Age : 31
Location : Woodstock IL
Vehicle : Cheby truck
Registration date : 2009-01-18

View user profile http://midwest240sx.forumotion.com

Back to top Go down

Diagrams and Locations  Empty Re: Diagrams and Locations

Post by 14k on Wed Oct 05, 2011 10:05 am

I Know some of the Print is small But you can zoom or save the picture and zoom on your own.

Diagrams and Locations  Heater10
Diagrams and Locations  Manual10

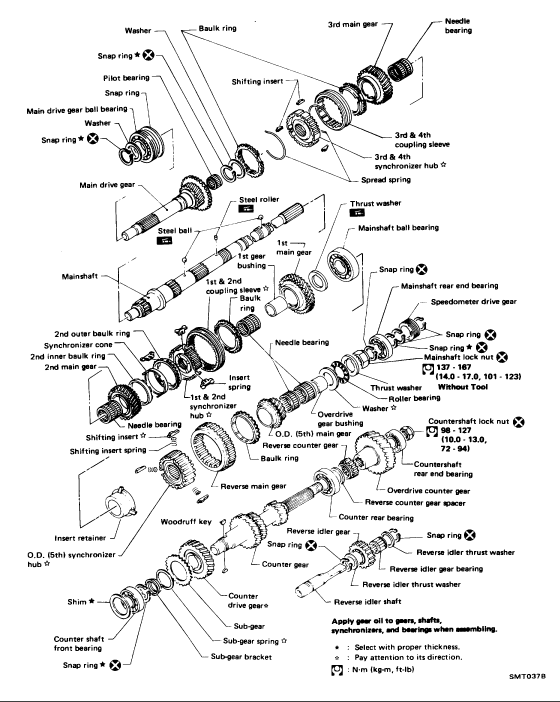

Diagrams and Locations  Manual11
Diagrams and Locations  Shift_10
14k
14k
Admin

Number of posts : 2687
Age : 31
Location : Woodstock IL
Vehicle : Cheby truck
Registration date : 2009-01-18

View user profile http://midwest240sx.forumotion.com

Back to top Go down

Diagrams and Locations  Empty Re: Diagrams and Locations

Post by 14k on Wed Oct 05, 2011 10:06 am

COMPONENT LOCATIONS

Accessory Relay: Relay Box B
Air Compressor: LH Side Of Engine
Air Conditioning Relay: Relay Box B
Air Flow Meter: LH Side Of Engine Compartment
Air Induction Valve: LH Side Of Engine Compartment
Air Regulator: Center Of Engine
Anti-Lock Broke Actuator: RH Side Of Engine Compartment
Anti-Lock Control Unit: LH Side Of Luggage Compartment Near Wheelwell
Anti-Lock Wheel Sensor: In Respective Brake Assembly
Automatic Speed Control Device (ASCD) Actuator (Less ABS Brakes: RH Fender Apron
ASCD Actuator (ABS Brakes): LH Rear Comer Of Engine Compartment
ASCD Cancel Switch: Behind LH Side Of Instrument Panel
ASCD Control Unit: Behind RH Side Of Instrument Panel
ASCD Hold Relay: Relay Box B
ASCD Pump (Less ABS Brake): LH Rear Comer Of Engine Compartment
ASCD Pump (ABS Brakes): RH Rear Corner Of Engine Compartment
Automatic Transmission Control Unit: Behind RH Side Of Instrument Panel
Blower Motor: Behind RH Side Of Instrument Panel
BPT Valve: Rear Of Engine
Combination Flasher Unit: Behind LH Side Of Instrument Panel
Condenser Fan Motor: Front Of Engine Compartment
Cooling Unit: Behind RH Side Of Instrument Panel
Crank Angle Sensor: In Distributor
Distributor: Front Of Engine
Door Lock Timer: Behind RH Side Of Instrument Panel
Dropping Resistor: LH Side Of Engine Compartment
Dual Pressure Switch: RH Side Of Engine Compartment
ECCS Control Unit: Below RH Side Of Instrument Panel
ECCS Relay: Relay Box A
EGR Control Valve: Rear Of Engine
EGR Control Solenoid Valve: RH Side Of Engine
Engine Temperature Sensor: RH Side Of Engine
Exhaust Gas Sensor: LH Side Of Engine
Exhaust Gas Temperature Sensor (California): RH Side Of Engine
FICD Solenoid Valve: RH Side Of Engine
Flasher: Behind LH Side Of Instrument Panel
Fog Lamp Relay: Relay Box B
Fuel Filter: RH Side Of Engine
Fuel Pump: In Fuel Tank
Fuel Pump Relay: Relay Box A
Fuse Panel: Behind LH Side Of Instrument Panel
Fusible Link: Relay Box A
Headlamp Retract Relay No. 1: Relay Box B
Headlamp Retract Relay No. 2: Relay Box B
Headlamp Retract Relay No. 3: Relay Box B
Headlamp Retract Relay No. 4: Relay Box A
Headlamp Timer: Behind LH Side Of Instrument Panel
Horn Relay: Relay Box B
Idle Air Adjusting (IAA) Unit: RH Side Of Engine
Ignition Coil: LH Side Of Engine Compartment
Inhibitor Relay: Relay Box A
Injector: Top Of Engine
Intake Door Motor: Behind RH Side Of Instrument Panel
Interlock Relay: RH Side Of Engine Compartment
Kickdown Switch: Behind LH Side Of Instrument Panel
Mode Door Motor: Behind RH Side Of Instrument Panel
Oil Pressure Switch: RH Side Of Engine, Near Oil Filter
Power Transistor: LH Side Of Engine Compartment
Pressure Regulator: Rear Of Engine
Pressure Regulator Solenoid Valve: RH Side Of Engine
Relay Box A: RH Side Of Engine Compartment
Relay Box B: LH Front Of Engine Compartment
Resistor: On Cooling Unit
Seat Belt Control Unit: Under Center Console
Shift Lock Control Unit: Behind LH Side Of Instrument Panel
Speed Sensor: Under Vehicle, Top Of Transaxle
Stop Lamp Switch: Behind LH Side Of Instrument Panel
Super Multiple Junction (SMJ): On LH Side Of Instrument Panel
Swirl Control Valve Solenoid Valve: RH Side Of Engine
Time Control Unit: Behind LH Side Of Instrument Panel
Thermo Control Amplifier: Behind RH Side Of Instrument Panel
Thermo Switch: RH Side Of Engine Compartment
Throttle Chamber: RH Side Of Engine
Warning Chime: Behind LH Side Of Instrument Panel
Windshield Wiper Motor (Front): RH Side Of Bulkhead
Windshield Wiper Motor (Rear): LH Side Of Rear Hatch, Near Window
Wiper Amplifier (Rear): Center Of Passenger Compartment Rear Panel
